Diamond core drilling rig is a highly versatile and mobile drilling system designed for extracting cylindrical core samples from subsurface formations. this rig integrates a powerful hydraulic or electric drive system with a precision rotary drilling mechanism. It features adjustable drilling angles, variable speed control, and automated feed systems to ensure efficient penetration through hard rock, concrete, or soil layers. The rig’s modular design allows for rapid deployment and adaptation to diverse applications, including geological surveys, mineral exploration, geotechnical engineering, and construction site investigations. Its core barrel assembly, paired with diamond or tungsten carbide drill bits, enables clean and undisturbed sample retrieval at depths 600 meters, making it indispensable for resource evaluation and structural analysis. Safety features such as overload protection and emergency stop mechanisms further ensure operational reliability in demanding environments.

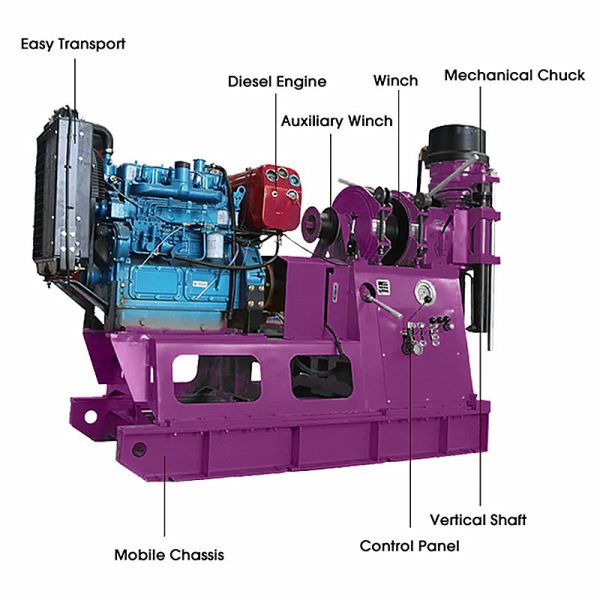

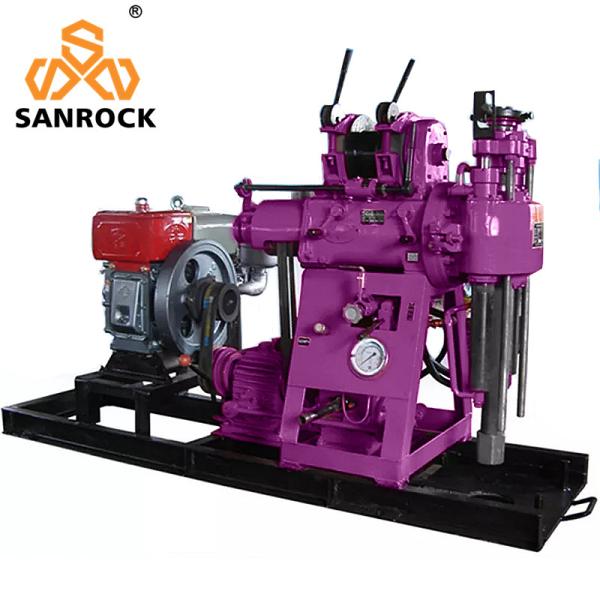

XY-3 hydraulic core drilling rig:
Multi-Speed Gearbox: Equipped with an automobile gearbox assembly, offering multiple speed stages and a reasonable speed adjustment range.
High Torque and Strength: Features large torque and strong bearing capacity, allowing for remote control and convenient, centralized operation.
Powerful Engine with Reverse Speeds: Provides high power and two reverse speeds, making it easier to handle drilling accidents.
Flexible Hydraulic Chuck: Comes with a normally closed hydraulic chuck, ensuring flexible and convenient operation.
Large Diameter Vertical Shaft: The vertical shaft has a large diameter and can be fitted with a large hexagonal active drill rod for enhanced versatility.
Products Description
| Model | XY-3 | | Drilling depth | 600m | | Borehole diameter | 300-75mm | | Max open hole caliber | 300mm | | End hole caliber | 75mm | | Drilling rod diameter | 60 | | Drilling angle | 90°-65° | | Spindle | | spindle speed | 30-1050r/min | | Spindle stroke | 29-137r/min | | Spindle stroke | 60mm | | Spindle inner diameter | 96mm | | Lifting capacity | 6000kg | | Hoist | | Max.single line lifting speed | 0.5-1.9m/s | | Wire rope caliber | 12.5mm | | Max.single line lifting capacity | 4000kg | | Reel diameter | 300mm | | Wire rope length | 50m | | Maximum lifting capacity of single rope | 3000kg | | Mud pump | | Type | Horizontal three cylinder BW-250 | | Displacement | 250l/min | | Work pressure | 80kg/cm² | | Water inlet pipe diameter | 75mm | | Water outlet pipe diameter | 50mm | | Gear oil pump | | Duplex gear oil pump | CBF-F63/25 | | Front displacement, pressure | 63l/min 20mpa | | Water outlet pipe diameter | 25l/min 20mpa | | Power | | Diesel engine | 39kw | | Electric machinery | 22kw | | Weight size | | Drill weight | 1800kg | | Shape size | 2500*900*1800mm | | |
